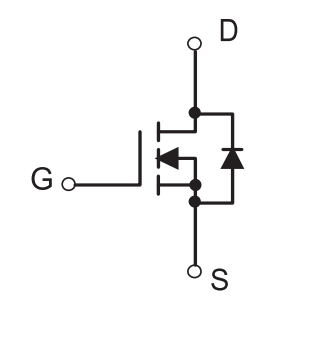

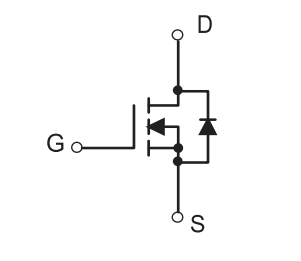

| Part Number | Download | Circuit | Status | Type | Process |
ESDYes/No |
VDSV |
VGSV |
IDA |
VGS(TH)V |
RDS(mΩ)@VGS10V Typ |
RDS(mΩ)@VGS10V Max |
RDS(mΩ)@VGS4.5V Typ |
RDS(mΩ)@VGS4.5V Max |
Package |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
| CJU05N60M1D |
 |
 |
Active |
Single-N |
Planar |
No |
600 |
±30 |
5 |
3~5 |
1600 |
2150 |
- |
- |
TO-252-2L |
| CJPF12N65M1 |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
12 |
2~4 |
670 |
800 |
- |
- |
TO-220F-B |
| CJP12N65M1 |
|
|
Active |
Single-N |
Planar |
No |
650 |
±30 |
12 |
2~4 |
670 |
800 |
- |
- |
TO-220-3L |
| CJPF10N50M1 |
|
 |
Active |
Single-N |
Planar |
No |
500 |
±30 |
10 |
2~4 |
410 |
680 |
- |
- |
TO-220F-B |
| CJU07N50M1 |
|
 |
Active |
Single-N |
Planar |
No |
500 |
±30 |
7 |
2~4 |
1100 |
1300 |
- |
- |
TO-252-2L |
| CJU04N50M1 |
|
|
Active |
Single-N |
Planar |
No |
500 |
±30 |
4 |
2~4 |
1200 |
1500 |
- |
- |
TO-252-2L |
| CJU02N50M1 |
|
|
Active |
Single-N |
Planar |
No |
500 |
±30 |
2 |
2~4 |
4200 |
5500 |
- |
- |
TO-252-2L |
| CJPF10N80M1 |
|
|
Active |
Single-N |
Planar |
No |
800 |
±30 |
10 |
2~4 |
850 |
1150 |
- |
- |
TO-220F-B |
| CJPF07N80M1 |
|
|
Active |
Single-N |
Planar |
No |
800 |
±30 |
7 |
2~4 |
1200 |
1800 |
- |
- |
TO-220F-B |
| CJPF04N65M1 |
|
|
Active |
Single-N |
Planar |
No |
650 |
±30 |
4 |
2~4 |
2100 |
2600 |
- |
- |
TO-220F-B |
| CJP07N50M1 |
|
|
Active |
Single-N |
Planar |
No |
500 |
±30 |
7 |
2~4 |
600 |
800 |
- |
- |
TO-220-3L |
| CJP04N50M1 |
|
|
Active |
Single-N |
Planar |
No |
500 |
±30 |
4 |
2~4 |
1200 |
1500 |
- |
- |
TO-220-3L |
| CJP03N90M1 |
|
|
Active |
Single-N |
Planar |
No |
900 |
±30 |
3 |
2~4 |
4800 |
5500 |
- |
- |
TO-220-3L |
| CJU04N65M1E |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
4 |
2~4 |
2000 |
2600 |
- |
- |
TO-252-2L |
| CJPF10N65M1E |
|
|
Active |
Single-N |
Planar |
No |
650 |
±30 |
10 |
2~4 |
820 |
1000 |
- |
- |
TO-220F-B |
| CJPF10N65M1 |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
10 |
2~4 |
820 |
1000 |
- |
- |
TO-220F-B |
| CJPF07N65M1E |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
7 |
2~4 |
1000 |
1500 |
- |
- |
TO-220F-B |
| CJP10N65M1E |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
10 |
2~4 |
820 |
1000 |
- |
- |
TO-220-3L |
| CJP07N65M1E |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
7 |
2~4 |
1000 |
1500 |
- |
- |
TO-220-3L |
| CJPF07N65M1 |
|
 |
Active |
Single-N |
Planar |
No |
650 |
±30 |
7 |
3.1 |
1000 |
- |
- |
- |
TO-220F-B |
